PRY-400/600 Bread Food Paper Bag Making Machine Automatic V Shape Bottom

Name: PRY400600 Bread Food Paper Bag Making Machine Automatic V Shape Bottom
Brand: PRINTYOUNG
Price: 26000 USD

China PRY-400/600 Bread Food Paper Bag Making Machine Automatic V Shape Bottom wholesale

Brand Name : PRINTYOUNG

Model Number : PRY-400/600

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 26000-30000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Bag Width (W) : 70-280 mm

Gusset Highly (H) : 0-120 mm

Standard flap(P) : 12-20 mm

Max. Speed : 500 pcs/min

Max. reel weight : 400 Kg

Paper Roll Width : 220-700 mm

Max.Roll Diametr : 1100 mm

Reel inner diameter : 76 mm

Paper specification : 30-80 gsm

Web edge control system : Double photoelectric automatic correction control system

Web tension control system : Semi-automatic constant tension control system

Air pressure : ≥0.12cmm, 0.4~1Mpa

Driven motor : Double servo motor

Electric : 380V, 50Hz, 3 phase

Power : 5KW

Weight : 2800Kg

Overall dimension : 4520×1550×1500 mm

Contact Now

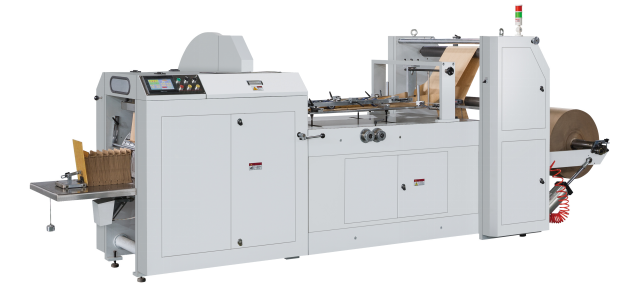

PRY-400 Automatic V Bottom Bag Making Machine

PRY-400/600 Bread Food Paper Bag Making Machine Automatic V Shape Bottom

Features

Automatic High Speed Paper Bag Making Making Machine forming the paper bag in one process from printed or unprinted roll paper,side gluing,roll folding,roll paper cutting, bottom folding,bottom gluing,bottom forming,bag formation at a stroke.Easy operation,low power consumption,high efficiency.It is an ideal machine for producing food bags like bread bags,KFC bags and McDonald’s bags.

1.Controls bag length freely in a range through the human-machine interface.
2.Adopt touch screen and PLC programmable control system,the work condition can be shown real time.
3.Equipped with an accurate photocell system for printed mark tracking.
4.Double photoelectric sensor limit automatic correction control system.
5.Material lifting adopt pneumatic lift structure.
6.The machine has automatic counting system.

Technical Parameters

Type	PRY-400	PRY-600
Cutting Length (C)	150-460 mm	220-620 mm
Bag Length (L)	140-450 mm	210-610 mm
Bag Width (W)	70-280 mm	70-280 mm
Gusset Highly (H)	0-120 mm	0-120 mm
Standard flap(P)	12-20 mm	12-20 mm
Max. Speed	500 pcs/min	500 pcs/min
Max. reel weight	400 Kg	400 Kg
Paper Roll Width	220-700 mm	220-700 mm
Max.Roll Diametr	1100 mm	1100 mm
Reel inner diameter	76 mm	76 mm
Paper specification	30-80 gsm	30-80 gsm
Web edge control system	Double photoelectric automatic correction control system	Double photoelectric automatic correction control system
Web tension control system	Semi-automatic constant tension control system	Semi-automatic constant tension control system
Air pressure	≥0.12cmm, 0.4~1Mpa	≥0.12cmm, 0.4~1Mpa
Driven motor	Double servo motor	Double servo motor
Electric	380V, 50Hz, 3 phase	380V, 50Hz, 3 phase
Power	5KW	5KW
Weight	2800Kg	2800Kg
Overall dimension	4520×1550×1500 mm	4520×1550×1500 mm

Configuration

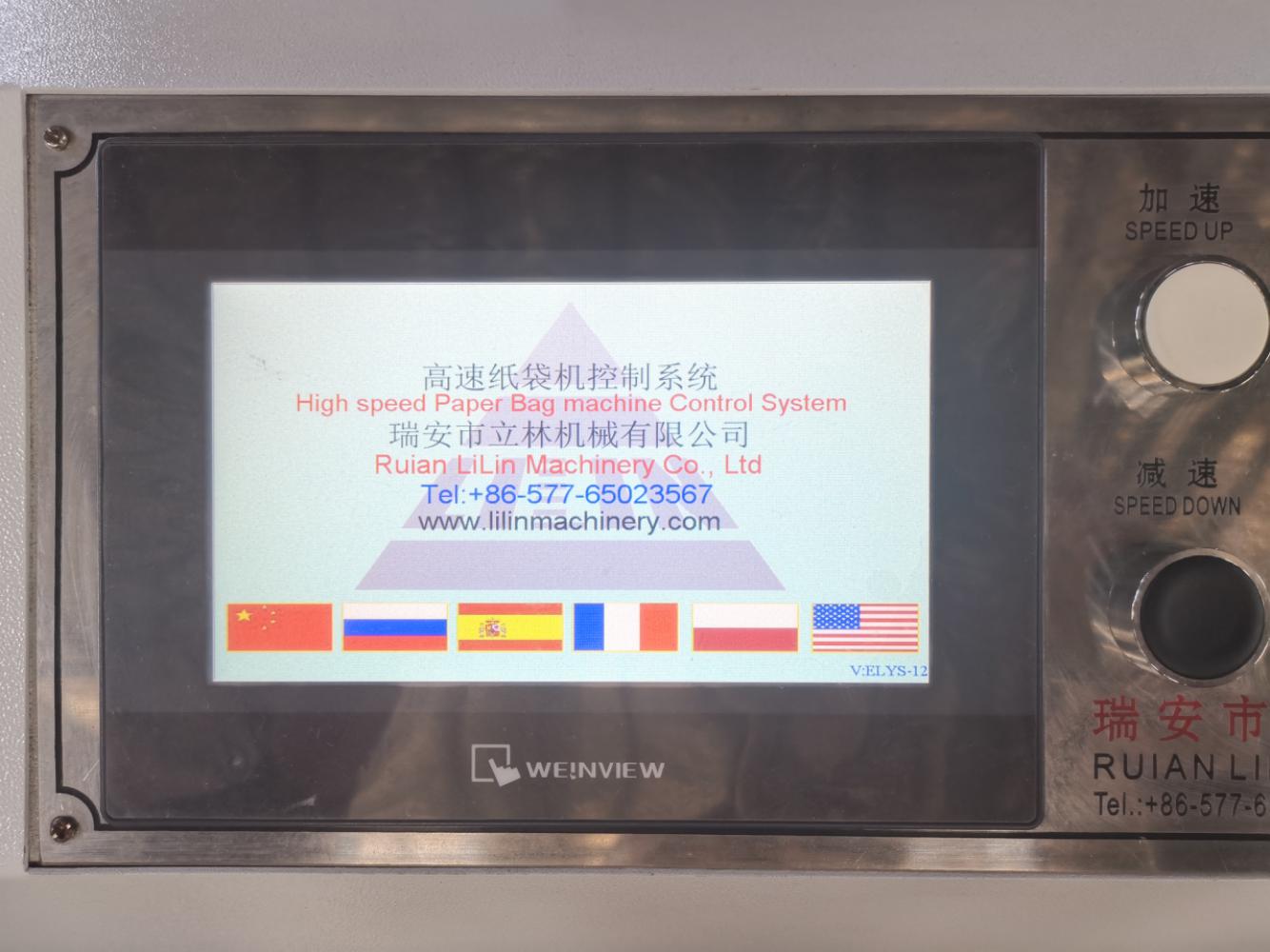

Adopt touch screen and PC control system,the work condition can be shown real time.Cooperate with the ultra precise three servo motor,the stability can be guaranteed.

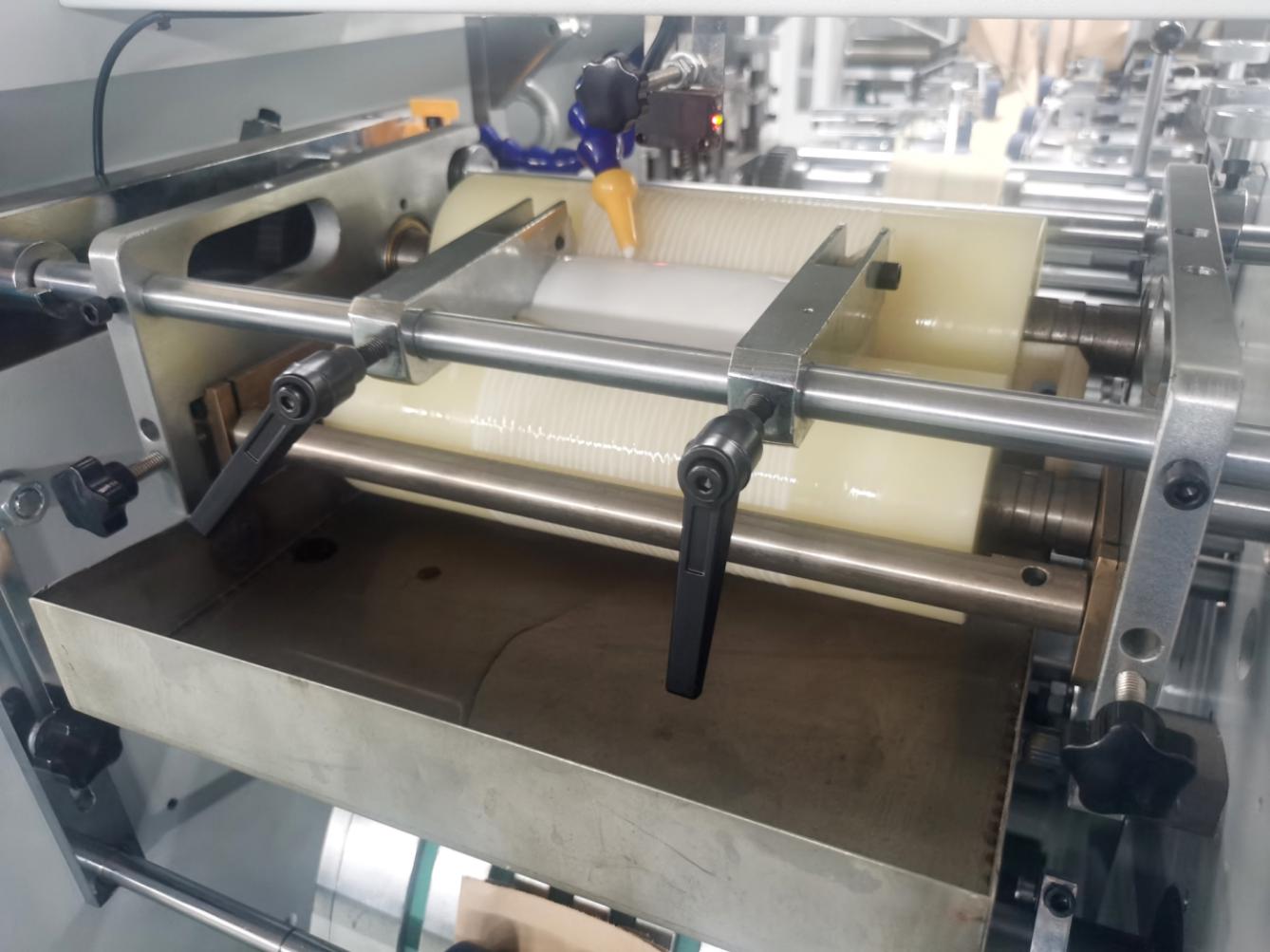

Independent glue coating sy- stem,the glue coating system can be run independently aft- er the machine stops,avoidin- g the glue drying and not ea- sy to clean.The glue tank is glued to the bottom to preve- nt glue from dripping.Non-stop glue position adjustment structure,bottom glue adjustment is very simple.

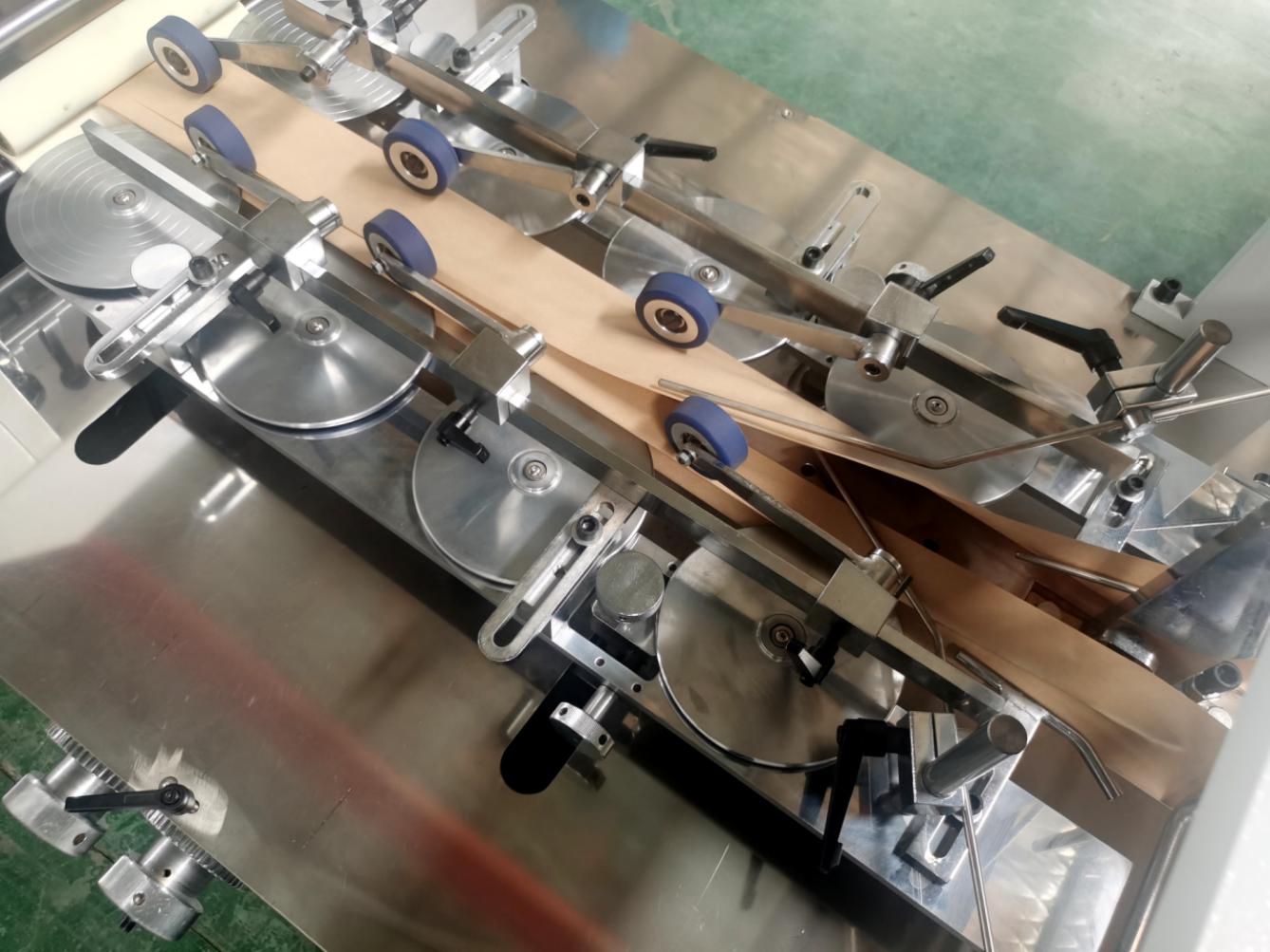

The integral tube forming adjustment structure can be adjusted at the same time on one side or both sides to improve work efficiency, reduce the scrap rate generated by the adjustment process,and save adjustment time and stability of adjustment.

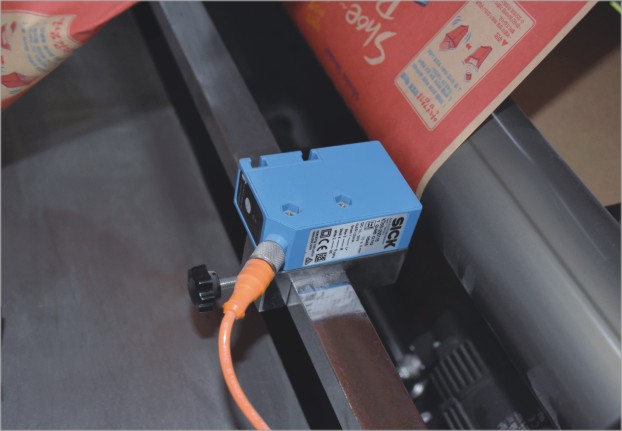

Precise color mark tracing system can make sure precision of bag printing pattern cutting position.The color mark tracing function can avoid the readjustment after paper reel changing,paper web breaking ,or power outage.The machine can stop automatically when the color mark is error.It will save time and reduce the waster rate.

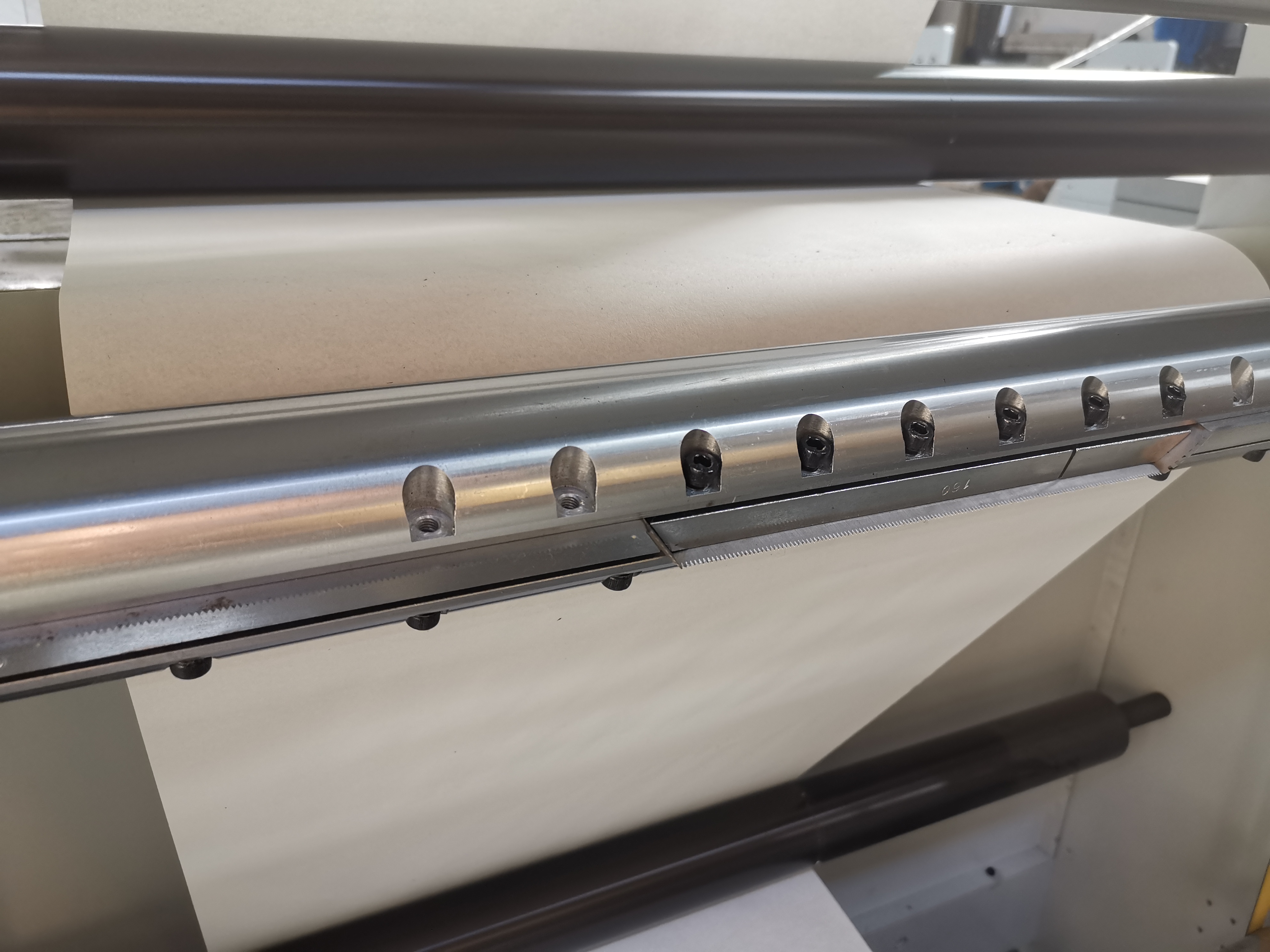

The High speed servo puncturing system pre-cut the material by the tooth knife.It make the bags more pricision,evenly and beautiful.It could be used for more materials.

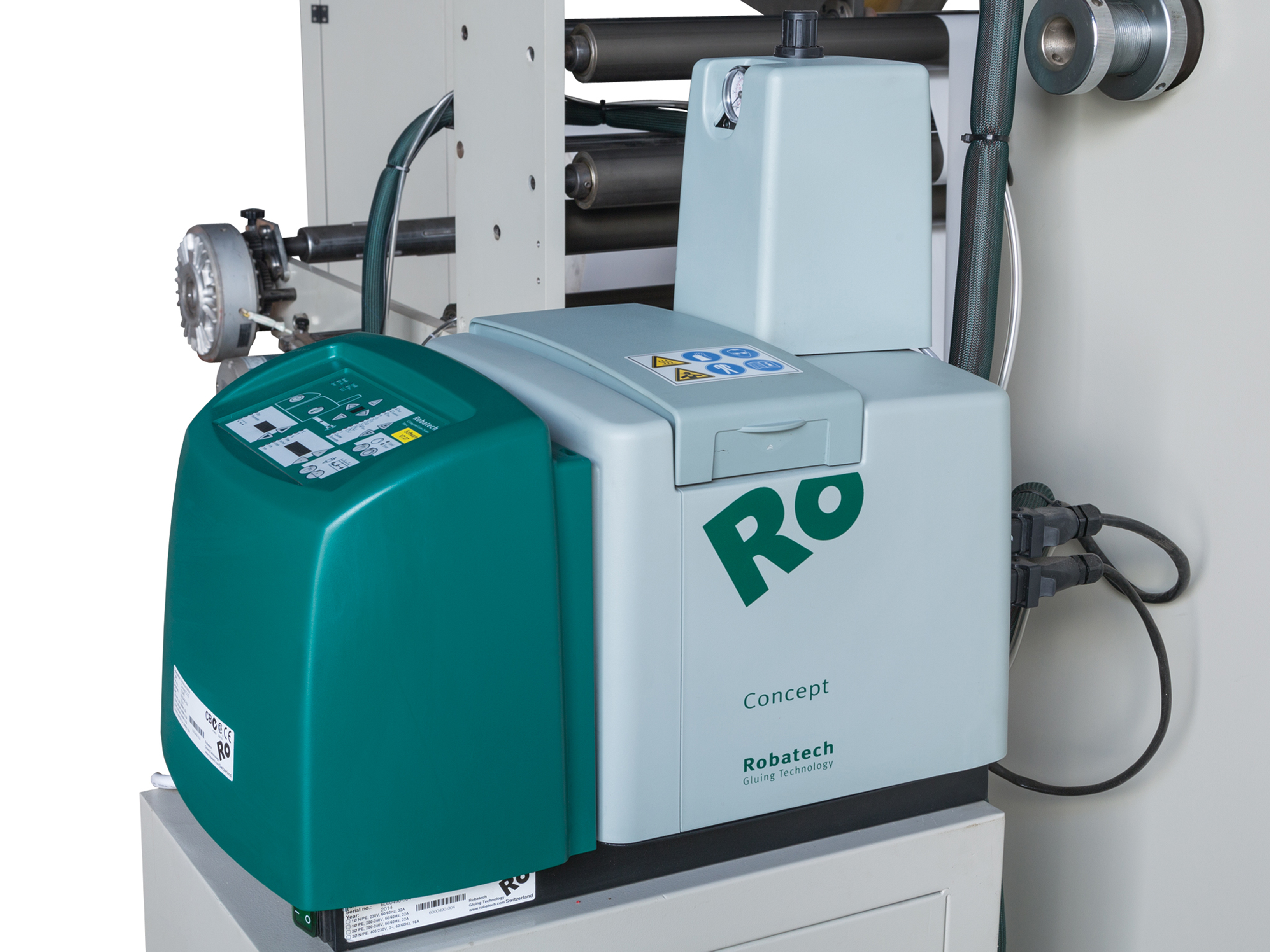

Hot-melt glue spraying system makes the pasted materials more stably,Faster bonding.

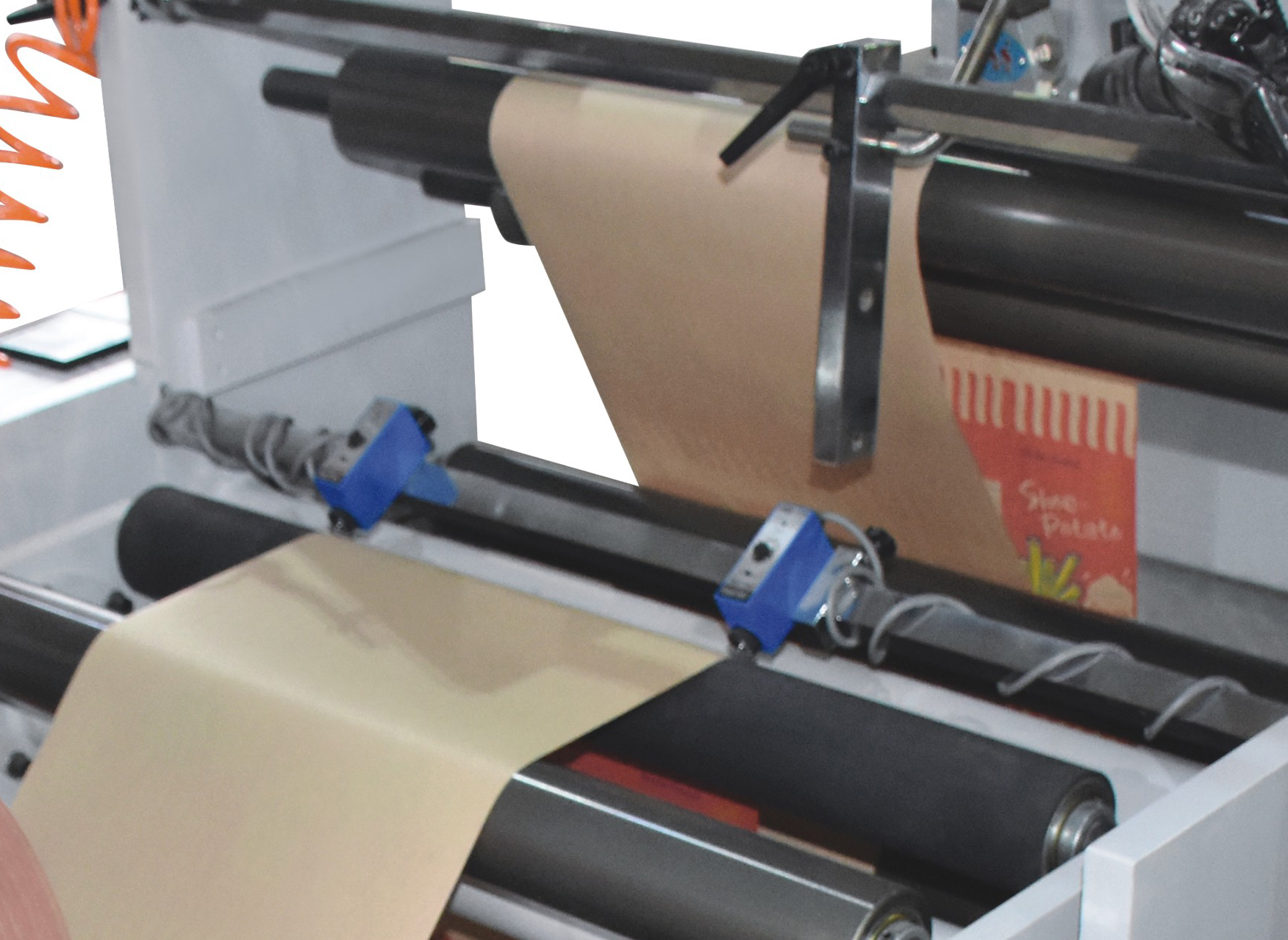

Automatic edge control system adopts two photoelectric sensors to detect the edge of paper web.The motor doesn’t need to work often so its power consumption is reduced and its life is extended.(User can choose single photoelectric sensor to control edge.)

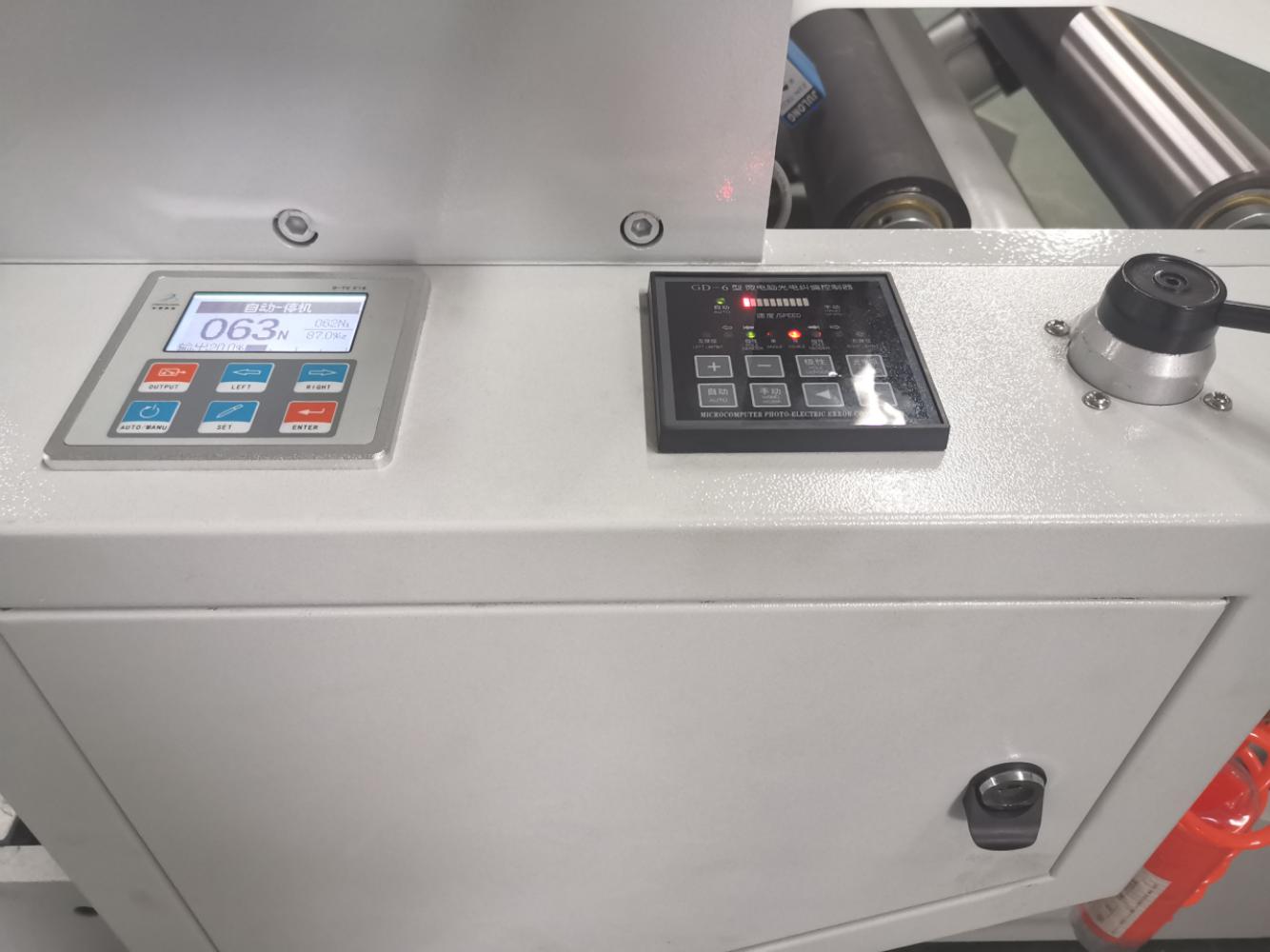

automatic constant tension control system.The tension will be just right from beginning to end.

Pneumatic paper reel lifting device make paper reel changing easy.Press one switch and the paper reel will be lifted automatically.Avoid the personal injury.The pneumatic lifting system can make sure the stability of paper web feeding and avoid moving the feeding stand.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.

We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.

For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.

We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:Shanghai company is 12 years old, the factory is more than 20years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
